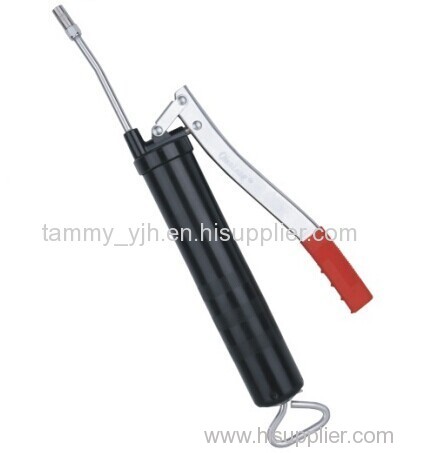

Lever type action grease gun 400cc (EW-GG401)


1. Feature:
Code: EW-GG403
Capcaity: 400CC

Pressure:3500-8000psi
Material: Steel ,seamless steel pipe
Finishing: Red painting, or green, yellow, chirome plate, etc
Type: Pistol type, air operation
Another capacity: 120-1000cc
Pressure range : 3500-150000psi
Accessories: Rigid tube + coupler /Flexible hose + pointed nozzle


2. Instruction:

ISTRUCTIONS FOR MULTI-LOAD GREASE GUN
FOLLOW THERSS STEPS CAREFULLY BEFORE USING THIS GUN

CARTRIDGE LOADING
Unscrew gun head from empty barrel
Draw back handle fully so that notch in rod can be locked into slot in cap
Remove slip over cap from new grease cartridge. Smooth out inside edge of cartridge if it is deformed.
Insert open end of cartridge into grease barrel. Pus all the way in. Remove the seal end from the cartridge.
Screw on head about fwo turns but did not tighten.
Disengage plunger rod from its locked position and push in.

IMPORTANT The rod will stick out part way if the plunger had not entered the cartridge.
Push on plunger rod handle to force plunger into cartridge. Pump lever rod handle at the same time to expel air. Tighten head to barrel when grease comes through vent in gun head.

B. LOADING WITH DISPENSER
Remove plug form hole in head cap and insert gun filter valve. Make sure is the type that fits the adapter on the pump.
Couple the filter valve to the adapter by pushing it in and rotating slightly.
Hold the gun firmly to the pump and operate the pump handle.
As the grease is pumped into the gun barrel, the plunger handle will be extended Watch carefully, and when the grppve in the rod becomes visible, the gun is full.

Note: Always remove used cartridge from gun when bulk filling.
BULIKNG LOADIN
Remove the gun head from the container tube
Draw back the plunger handle entirely. Fill bulk grease into empty container tube.
Reassemble the gun bead to the container tube. Press the catch plate and relaease the piston rod. Pull down the plunger handle


3. Packing:
20pcs into a carton
N/W: 20kg
G/W: 19kg
Carton dimension: 47x40x32cm /color box


4. Delivery time: Within 30days after your 30%deposit
Lording Port: Ningbo or Shanghai, qingdao, tianjin, shenzhen...
Payment Term: 30% deposit, and balance shipment by T/T or L/C

5. Various kinds can be offered, such as the american type, germany type, mini type, power type, etc
Sample can be offered before place the order.
Any questions please let us know. Thanks!
